Product information:

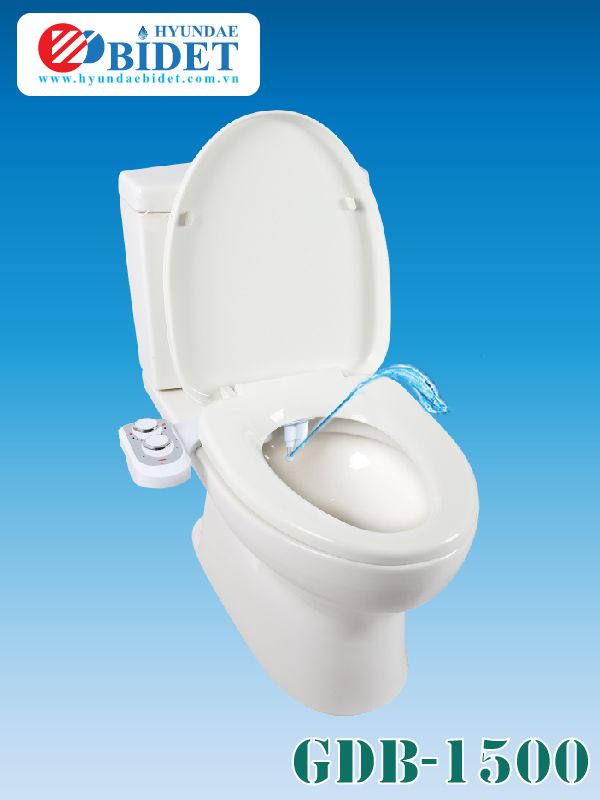

Sanitary ware - Hyundae Bidet GDB-1500 (2 nozzles)- using hot - cold water system

• Equipment for specialized posterior cleaning and feminine cleaning
• Non-electric, safe when used

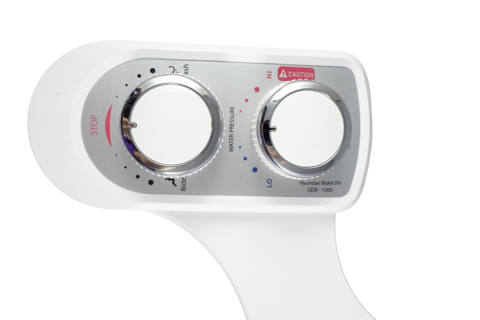

• The simple, intelligent design of a rotary button controls 2 nozzles, 1 button to adjust the water temperature.
• Simple to use, suitable for all consumers.
• Can install itself without taking much time
• Easy cleaningSuitable for most types of toilets available at home (TOTO, INAX, COTTO, Caesar ...)

Product specifications:

Instructions for checking toilet compatibility

Product characteristics:

• Easy installation (You can install it yourself)
• Special equipment does not use electricity
• Saving toilet paper
• Convenient to clean the equipment with water
• Convenient with the automatic nozzle washing mode
• Skills for women Bidet 2 nozzles
• Using hot - cold water system
• Installation of the WC is available
• Simple when adjusting the water pressure
• Less damage
• Bring refreshment after use

Products include:

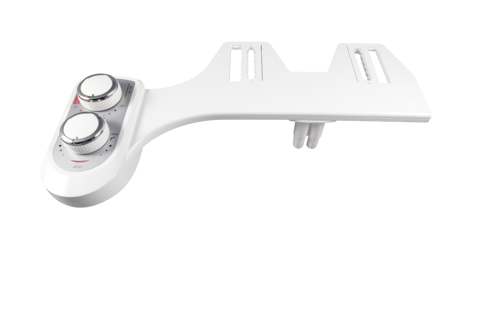

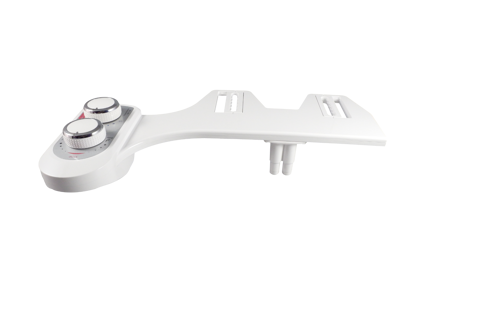

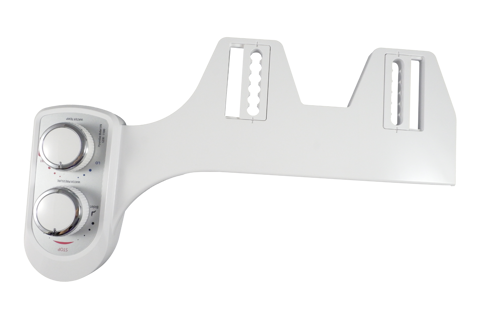

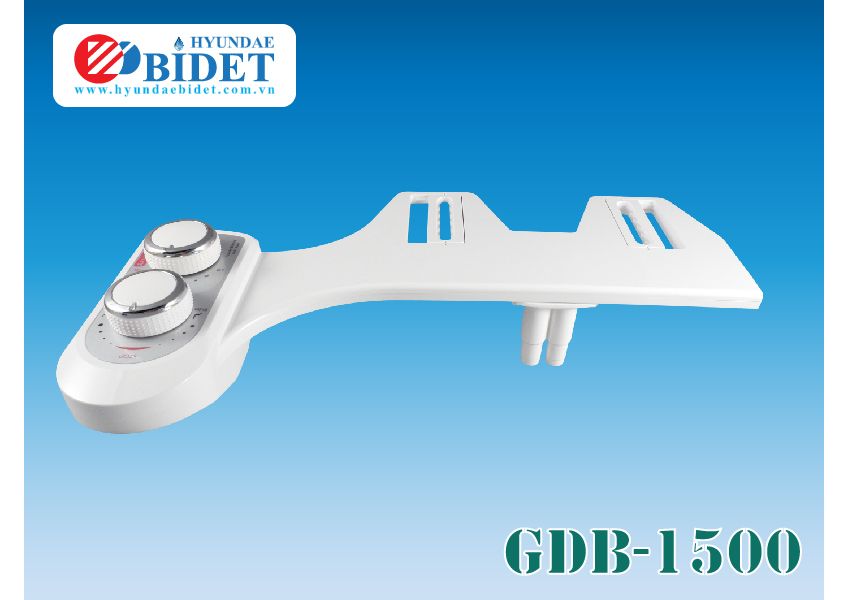

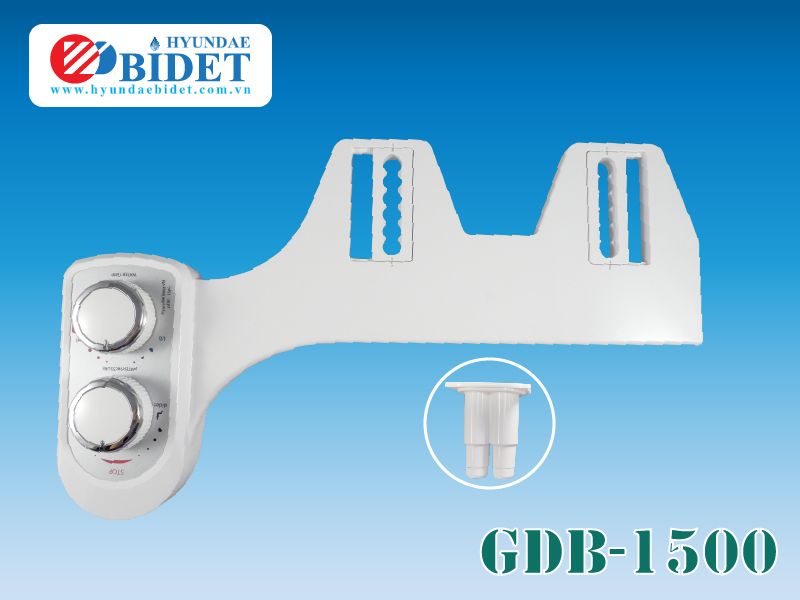

- Bidet GDB-1500 equipment

- T - Adapter

- Water pipe

- Nozzle

- Instruction and Warranty paper

Installation instructions:

1- Order of assembly.

Remove the cover of the toilet seat separately. Remove the fixed screw of the toilet lid separately.

2- Remove the water link hose available.

• First, turn the water control valve again.
• Remove large screws shaped 6 corners below the toilet water storage box and small screws shaped 6 right corner water adjustment valve of 2 connectors.
• Eliminate iron water pipes in a way that draws from top to bottom.

3- Removing iron water pipes replace by plastic pipes, T-connecting pipes, and high-pressure pipes, and assembling them in order.

4- Put the main device on the toilet and fix it.

5- Using screws to connect the ends of pipes and screws to tighten them together.
