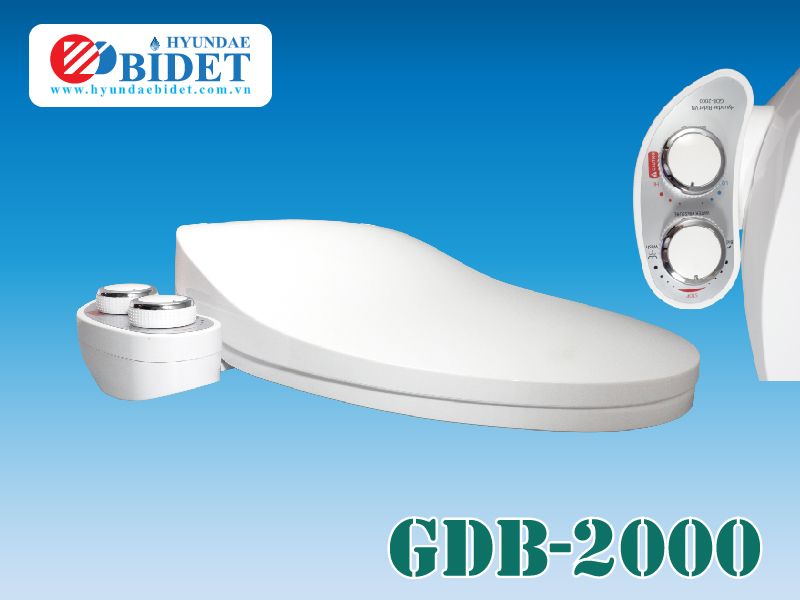

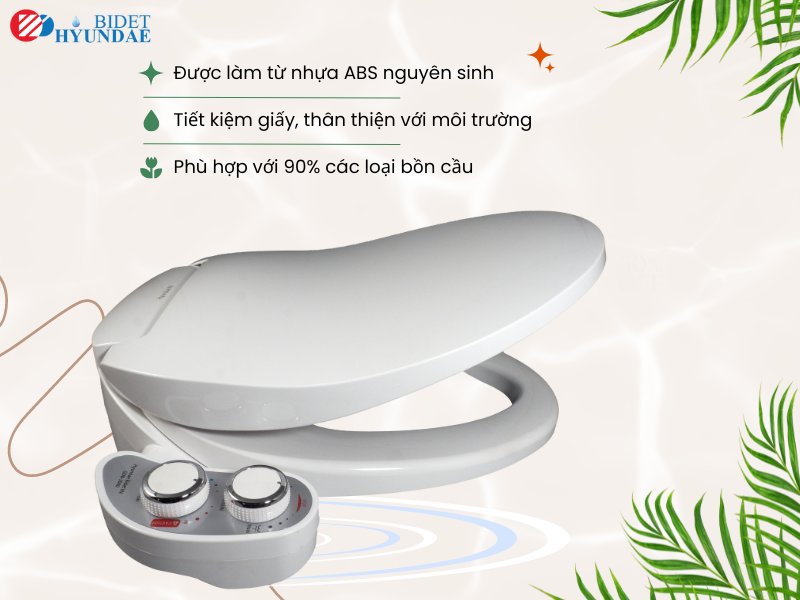

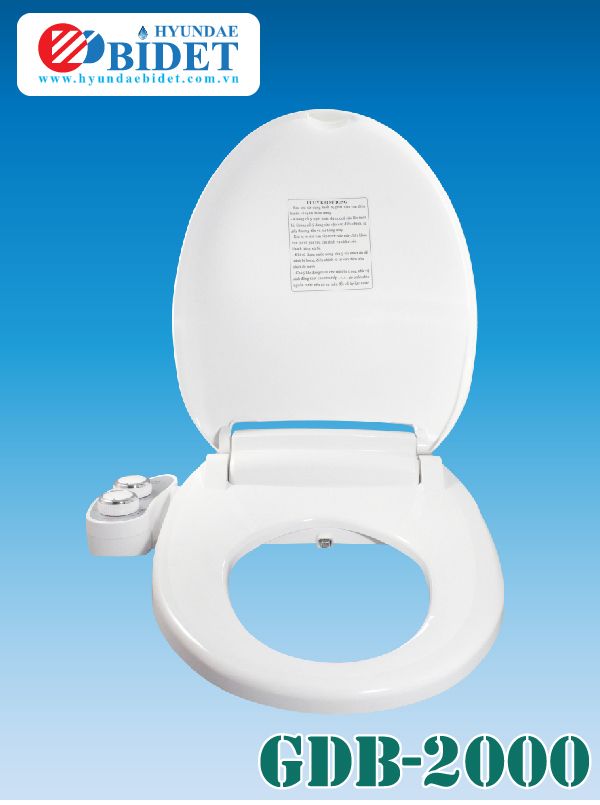

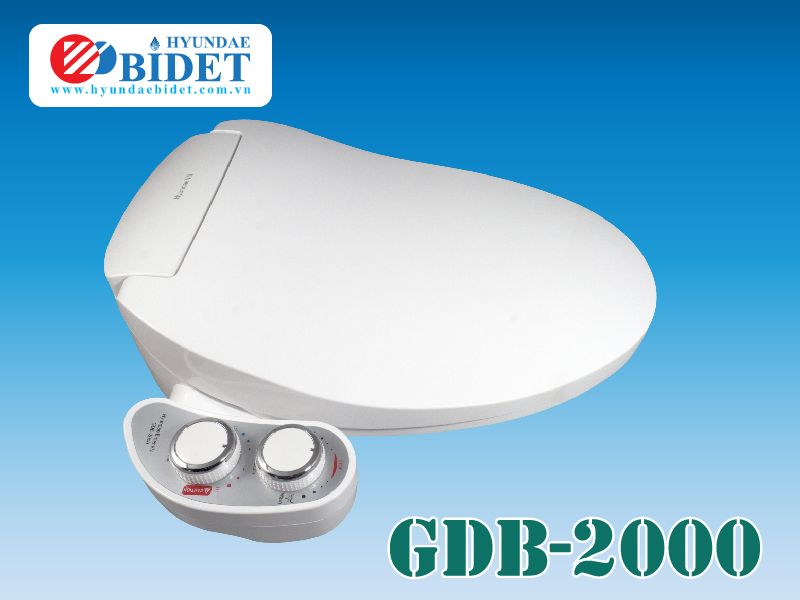

Hyundae Bidet GDB-2000

Product information:

Sanitary ware - Hyundae Bidet GDB-2000 (2 nozzles)- using hot - cold water system

• Equipment for specialized posterior cleaning and feminine cleaning
• Non - electric, safely when used
• The simple, intelligent design of a rotary button controls 2 nozzles, 1 button to adjust the water temperature.
• Simple to use, suitable for all consumers.
• Can install itself without taking much time
• Easy cleaningSuitable for most types of toilets available at home (TOTO, INAX, COTTO, Caesar ...)

Product specifications:

Product characteristics:

• 2 nozzles with 2 separate functions: posterior cleaning and feminine cleaning
• Easy installation (You can install it yourself)
• Special equipment does not use electricity
• Saving toilet paper
• Convenient to clean the equipment with water
• Convenient with automatic nozzle washing mode

• Using hot - cold water system
• Installation to the WC is available
• Simple when adjusting the water pressure
• Less damage
• Bring refreshment after use


Products include:

- Bidet GDB-2000 equipment

- T - Adapter

- Water pipe

- Hinges and boosters

- Bolts and Rivets (2 pieces)

- Instruction and Warranty paper

Installation instructions:

1- Order of assembly.

Remove the cover of the toilet seat separately.Remove the fixed screw of the toilet lid separately.

2- Remove the water link hose available.

• First turn the water control valve again.
• Remove large screws shaped 6 corners below the toilet water storage box and small screws shape 6 right corner water adjustment valve of 2 connectors.
• Eliminate iron water pipes in a way that draws from top to bottom.

3- Removing iron water pipes replace by plastic pipes, T - connecting pipe, high pressure pipes and assembly in order.

4- Put the main device on the tolet and fix it.

5- Using screws to connect the ends of pipes and screws to tighten together.
